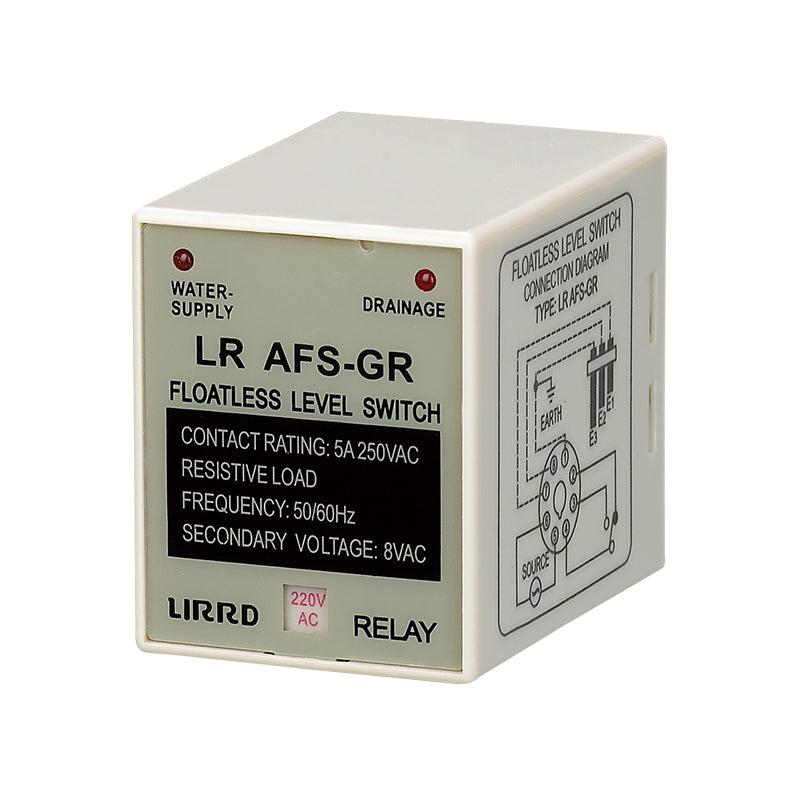

| Classification | Floatless Relay | ||
| Model | LAFS-GR | LAFR-G | |
| Dimension(mm) | 50.0H * 40.0W * 58.0L | 61.0H * 49.0W * 70.0L | |
| Socket Type | PF083A PF085A | ||
| Using Mode | General | AFR-G | |
| High Sensing | |||
| Long Distance | |||
| Low Density | |||
| Two Lines | AFS-GR | ||
| Rated Voltage | AC:110V, 220V, 240V 50/60Hz | ||
| Indicator Operating | Two LED's Use For Two Status | ||
| Operate Voltage | 85~110% Of Rated Voltage | ||
| Electrode Voltage | 8VAC(Except Highsensing 24VAC) | ||
| Operate Resistance | 4KΩmin(general) | ||
| Release Resistance | 15KΩmin(general) | ||
| Response Time | Operate: 80ms max,Release: 160ms max. | ||
| Contact Capacity | 5A, 250VAC(resistiveload) | ||
| Length Of Cable | 1KM max.(general) | ||
| Service Life | Mechanical | 5*106 times | |
| Electrical | 105 times | ||
| Insulation Resistance | 100MΩ DC 500V Min. | ||
| Dielectric Strength | 1500VAC, 50/60Hz, For 1 Minute | ||
| Power Consumpting | 3.2VA | ||
| Ambient Temperature | -10~+55 °C | ||
| Ambient Humidity | 48~85%RH | ||
| Weight | 150g | ||
