Automatic Latitude and Longitude Astronomical Timer Switch
Automatic Latitude and Longitude Astronomical Timer Switch
Automatic Latitude and Longitude Astronomical Timer Switch
Automatic Latitude and Longitude Astronomical Timer Switch

Automatic Latitude and Longitude Astronomical Timer Switch

Sold out
$11.13

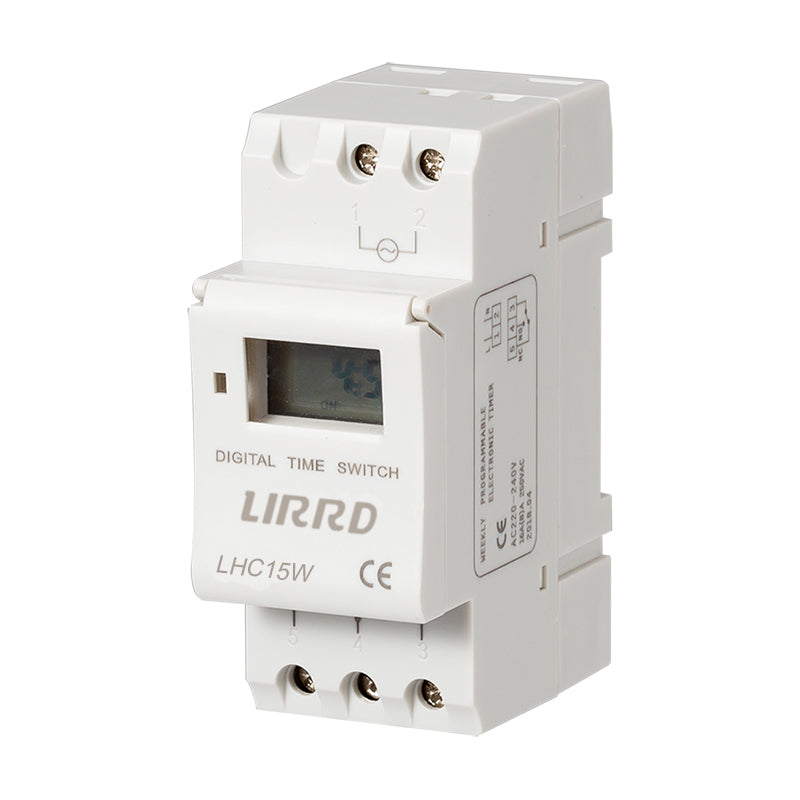

Front View LHC15W

Time Switch Application Scene

Time Switch Longitude And Latitude

Type LHC15W
Working Voltage 100,110,115,120,127VAC 220,230,240VAC 12,24,36VDC
Resistance Load Switch Capacity 25A 16A 25A
Power Consumption <1W <2W <1W
Voltage Range 85~110%
Power Source Frequency 50/60HZ
Power Reserve Time 5 Years
Control Electrical Life 100000 Times
Mechanical Life 10000000 Times
Display LCD
Setting Switch 8 Times Open And 8 Times Off
Timing Control Range 1 min- 168 hours
Average Error <±0.5s/24h,25℃
Mini Interval 1 min
Temperature -25℃~ +60℃
Relative Humidity <95%
Weight 125g
Dimensions 87*36*65mm
Installation Din Rail 35mm & Panel
Shell Material PC Material, Proof Flame
Dimension-LHC15W

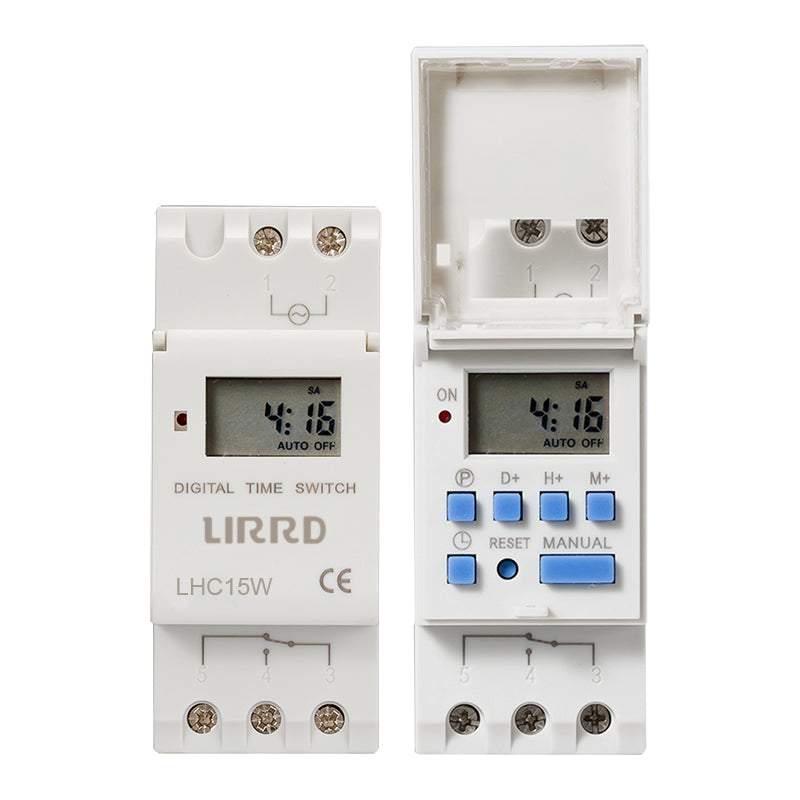

Details-LHC15W

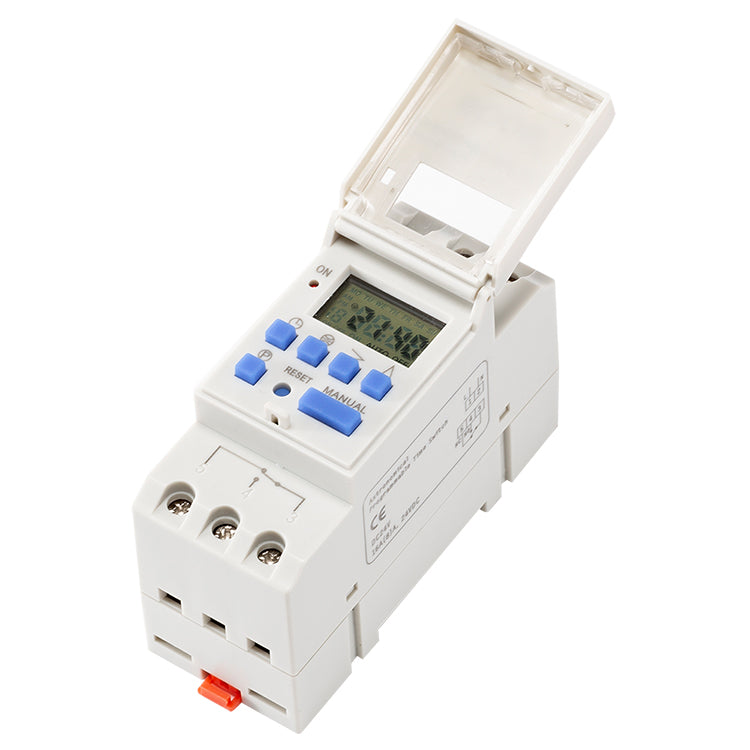

Structure-LHC15W
